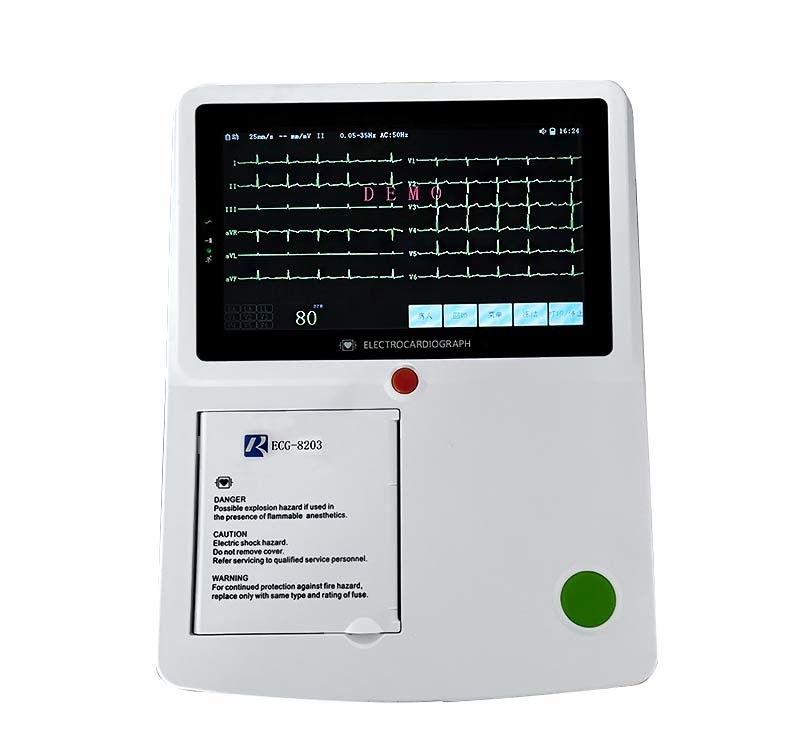

12 Channels Digital ECG Machine High Resolusion With Limb Electrodes Touch Screen

Light In Weight 12 Channels ECG Machine High Resolusion Digital ECG Machine With Limb Electrodes Touch Screen

 Instrument Characteristics
   Digital 12 channels ECG is digital twelve channel physiological function measurement equipment which records the heart waveform during elect-biological movement. It provides sufficient information on the analysis of arrhythmia and cardiovascular disease, helps to know the pathological disorder caused by some drugs and electrolyte, or unbalance of PH value.
Standard configuration

   Main unit and accessories, including patient cable, chest electrodes, limb electrodes, thermo sensitive print paper and power cord etc.
Intended use

    The cardiogram and heart rate recorded by the ECG can help doctors to analyze and diagnose heart disease or arrhythmia in hospitals. Its compact size makes it suitable for use while visiting patients at home.
NOTE
The patient who has a heart disease may have a normal electrocardiogram, so other tests are required for a full hearts appraisal. This equipment cannot be connected to the heart directly.

Function Features
• This digital 12 channels ECG is equipped with a 10.2 inches TFT touch screen. Here below are the main features and functions of this ECG machine.
• Modern in design, light in weight, compact in size.
• Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.

• TFT touch screen and full touch operation.
• Sensitive filters of ADS, HUM, and EMG.
• Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor's burden and improve working efficiency.
• Automatic adjustment of baseline for optimal recording.

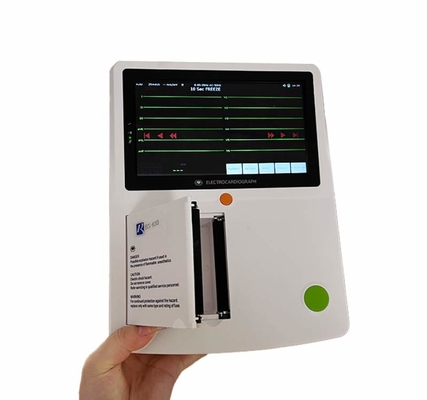

• 80mm thermal printer for 3 channel ECG machine and 50mm thermal printer for 1 channel
• ECG machine. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not   adjust anything Frequency Response is up to 150Hz.
• Lead off & lack off paper detection function.
• Built-in rechargeable li-ion battery (11.1V/2200mAh), AC/DC power conversion.
• Adapt to 100-240V, 50/60Hz AC power supply.
• Historical data and patient's information can be reviewed and printed.
• Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
• The machine can store over 500 ECG reports in its built-in flash.
• Standard RS232 and USB communication interfaces.

• Connect with PC via ECG workstation software.
• Sleep mode to save energy and extend display life.
• The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.

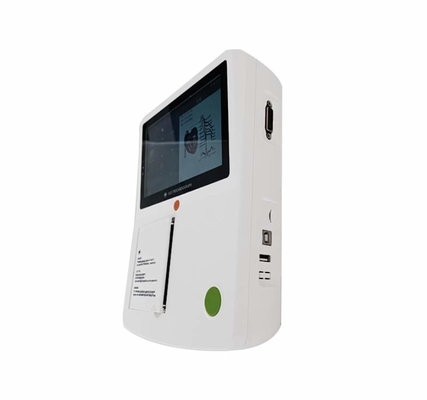

• Portable design with hidden handle, convenient to carry.
• 7 level printing thick can be chosen.
