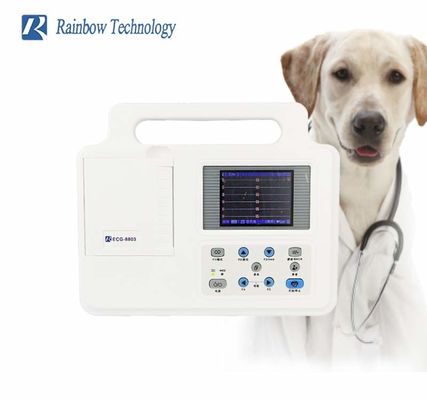

GB/T18830-2009 12 Leads Portable Vet ECG Machine

ECG-8801 is a basic ECG Machine that prints single ECG waveform /channel at a time. This item contains one amplifier channel and one recording system. This type ECG Machine's paper has space for only single trace at a time. Thus, all 12 channels ( I,II,III, aVR, aVL, aVF and V1-V6 ) of ECG Machine report will be printed one by one on the paper.
Such Type of ECG Machine used to have a multi positioning switch, by selecting the switch the desired lead connection can be selected.
However, ECG-8801 comes with microprocessors and with automatic modes. So, it will print ECG channel automatically one by one without manually changing the leads.
ECG-8801 uses 50 mm*20m print paper.

Parameters of ECG Machine

Operation mode:Manual/Auto/storage

Standard 12 leads:real-time ECG waveforms

Measure mode:Simultaneously acquisition of 12 lead,

Measure frequency:12Bit/1000Hz(1ms)

AC filter:50Hz/60Hz

EMG filter:25Hz/45Hz

Drift filter:Auto adaption

CMRR:≥95dB

Input circuit:Floating with defibrillation protection

Frequent response:0.05-160Hz(-3db)

Sensitivity:Auto/2.5/5/10/20/40(mm/mv)

Printing:High resolution thermal printer

Communication interface:Standard USB/RS232

Safety standard:IEC I CF(GB9706.1-2007)

Keypad panel:can input clinic information such as patient names

Display:320*240 Graphical LCD

Internal power supply:built-in rechargeable li-ion battery for 8-hour battery life

External power supply:AC 75V-265V Auto adjustment for wide input range

Standard configuration:

ECG-8801 Electrocardiograph mainframe

ECG suction bulb – one pair

12-channel ECG lead

AC adaptor

Grounding wire

Body/limb clamp – one set

Power line

Thermal print paper- two rolls

Print paper scroll

Operation manual
